library(tidyverse)
library(DT)
colon = read_csv("https://sta221-fa25.github.io/data/colon.csv")
annotations = read_csv("https://sta221-fa25.github.io/data/mapped_annotations.csv") %>%
distinct(ProbeID, .keep_all = TRUE)The data below are microarray data from the colons of 62 individuals. The data were curated by Alon et al. (1999) and were analyzed in a regression setting by Liang et al. (2013). Microarrays detect the gene expression levels of thousands of biological interactions. Expression levels are detected at targeted DNA probes that adhere directly to the array.
dim(colon)[1] 62 1912colon %>%
select(1:5) %>%
glimpse()Rows: 62
Columns: 5
$ y <dbl> -1, 1, -2, 2, -3, 3, -4, 4, -5, 5, -6, 6, -7, 7, -8, 8, -9, …
$ Hsa.3004 <dbl> 8589.416, 9164.254, 3825.705, 6246.449, 3230.329, 2510.325, …
$ Hsa.13491 <dbl> 5468.241, 6719.529, 6970.361, 7823.534, 3694.450, 1960.655, …
$ Hsa.37254 <dbl> 4064.936, 3718.159, 4705.650, 3975.564, 3463.586, 3072.816, …
$ Hsa.541 <dbl> 1997.893, 2015.221, 1166.554, 2002.613, 2181.420, 1810.205, …y: identity of the 62 tissues sampled. The numbers correspond to patients, a positive sign to a normal tissue, and a negative sign to a tumor tissue.The rest of the columns contains the expression of the 1911 genes with highest minimal gene expression “intensity” across the 62 tissues. Columns are named based on genetic probe IDs. Partial matching information about some of the probe IDs can be found in the file mapped_annotations.csv.
annotations %>%
glimpse()Rows: 1,911
Columns: 8
$ ProbeID <chr> "Hsa.3004", "Hsa.13491", "Hsa.37254", "Hsa.541", "Hsa.…
$ Accession <chr> "H55933", "R39465", "R85482", "U14973", "R02593", "T51…
$ Region <chr> "3' UTR", "3' UTR", "3' UTR", "gene", "3' UTR", "3' UT…
$ Other1 <chr> "1", "2a", "2a", "1", "2a", "1", "2a", "1", "1", "1", …
$ UniGeneID <dbl> 203417, 23933, 180093, NA, 124094, 71488, 240814, 8163…
$ GeneDescription <chr> "H.sapiens mRNA for homologue to yeast ribosomal prote…
$ SYMBOL <chr> NA, NA, NA, "RPS29", NA, NA, NA, NA, NA, NA, NA, "ACTB…
$ GENENAME <chr> NA, NA, NA, "ribosomal protein S29", NA, NA, NA, NA, N…colon =
colon %>%
mutate(y = ifelse(y < 0, "tumor", "normal"))
colon %>%
count(y)# A tibble: 2 × 2
y n
<chr> <int>
1 normal 22
2 tumor 40colon[,-1] %>%
colMeans() %>%
range()[1] 30.94248 7015.78671Notice how different the scale of the predictors is. We need to standardize our predictors for ridge regression.
X = colon[,-1] %>%
as.matrix() %>% # matrix important for glmnet later
scale() # scaling is important for ridge regression!
A = cor(X) - diag(1, nrow = ncol(X))

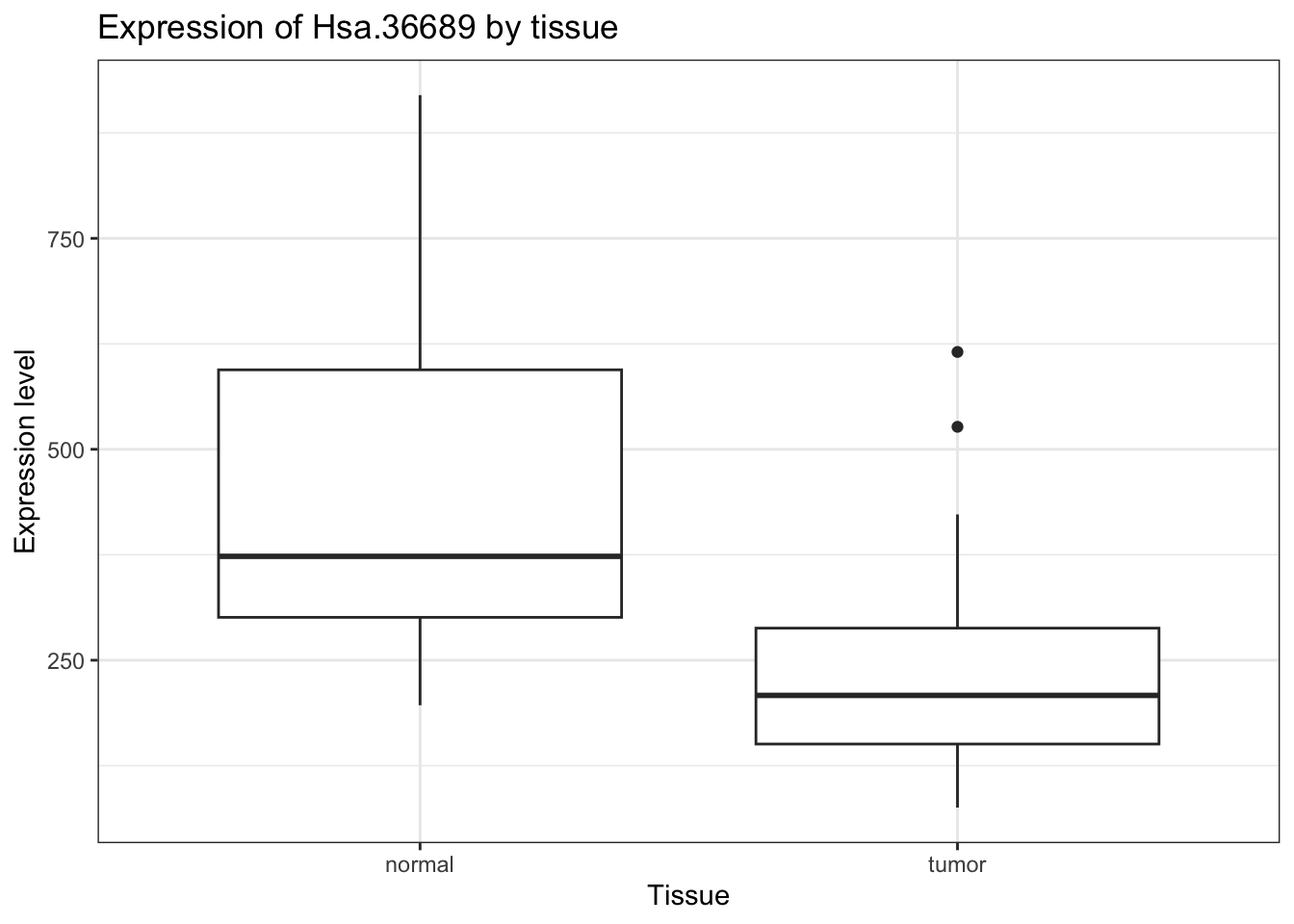

max(A)[1] 0.9865134colon %>%
ggplot(aes(x = y, y = Hsa.36689)) +
geom_boxplot() +
theme_bw() +
labs(x = "Tissue", y = "Expression level", title = "Expression of Hsa.36689 by tissue")
Read the abstract of Cessie and Houwelingen (1992). Read further and identify the objective function that we optimize to find \(\hat{\beta}_{logistic-ridge}\).
\[ \hat{\beta}_{logistic-ridge} = \underset{\beta}{\mathrm{argmin}} ~ - l(\beta) + \lambda \beta^T \beta \] where \(l(\beta)\) is the log-likelihood under the logistic regression model.
Equivalently,
\[ \hat{\beta}_{logistic-ridge} = \underset{\beta}{\mathrm{argmax}} ~ l(\beta) - \lambda \beta^T \beta \]
Note, we can also equivalently write \(\beta^T \beta = ||\beta||^2\).
We want \(y\) to be formatted as 0 or 1. Which should be 0 and which should be 1 if we want to know the effect of a gene on presence of a tumor?
y = colon %>%
select(y) %>%
mutate(y = ifelse(y == "tumor", 1, 0)) %>%
pull()
y [1] 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1
[39] 0 1 1 0 0 1 1 1 1 0 1 0 0 1 1 0 0 1 1 1 1 0 1 0glmnetInstead of hard-coding lambda, the efunction cv.glmnet fits the model for a range of lambdas using nfold cross-validation. See ?glmnet::cv.glmnet
set.seed(221)
cvfit <- glmnet::cv.glmnet(X, y, alpha = 0,
intercept = FALSE,
family = "binomial",
nfold = 10)
cvfit
Call: glmnet::cv.glmnet(x = X, y = y, nfolds = 10, alpha = 0, intercept = FALSE, family = "binomial")
Measure: Binomial Deviance
Lambda Index Measure SE Nonzero
min 12.20 70 1.138 0.12406 1911
1se 90.16 27 1.260 0.04199 1911Binomial deviance is \(-2 \log\text{likelihood}\).
“Min lambda” is the lambda value that gives minimum cross-validated error.
“1se lambda” is the largest lambda that is within 1 standard error of the minimum.
cvfit contains
cvfit$lambda - all \(\lambda\) values fitted
cvfit$cvm - mean CV error at each \(\lambda\)
cvfit$cvsd - standard error of CV error
cvfit$lambda.min - minimum lambda
cvfit$lambda.1se - 1se lambda

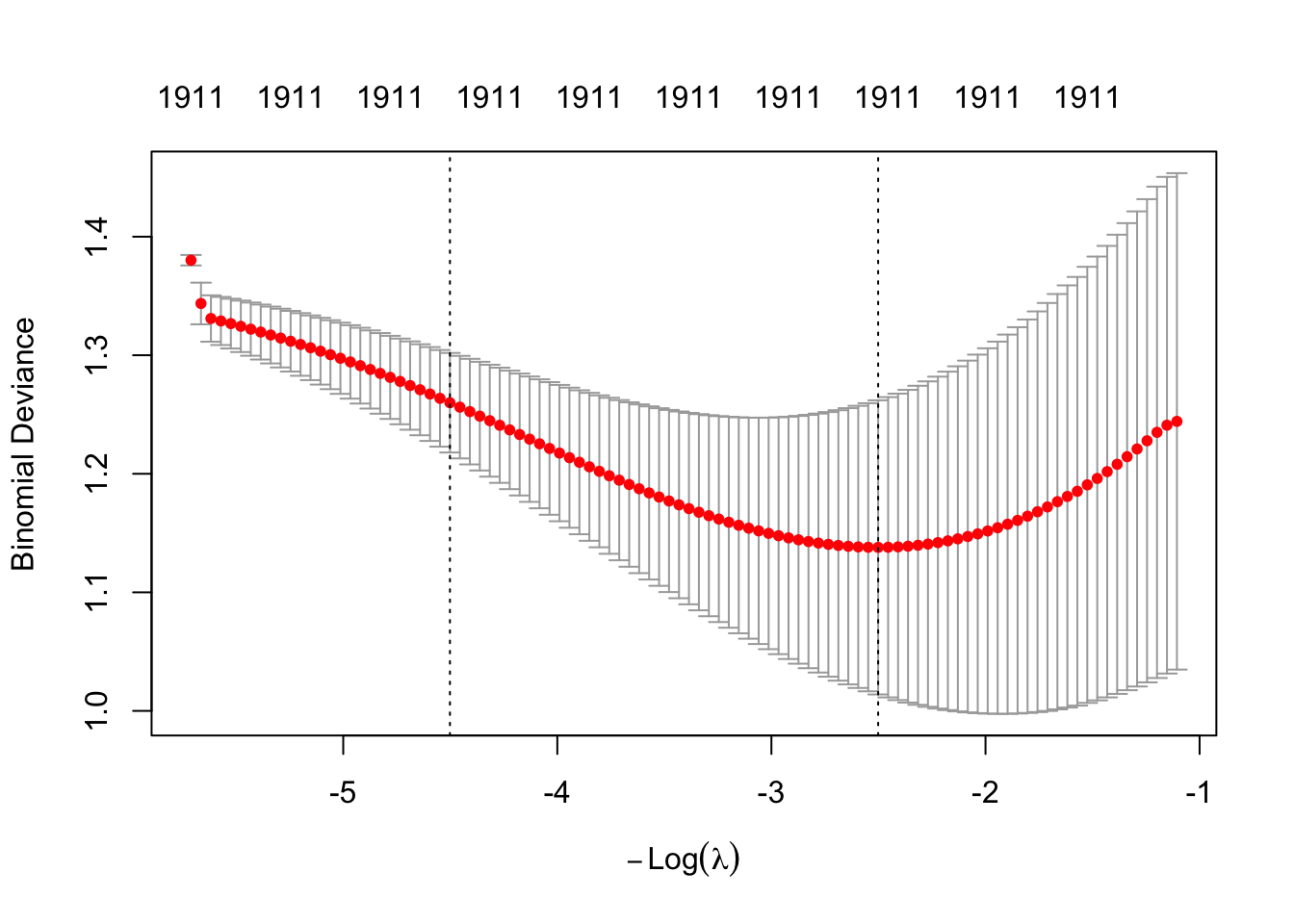

plot(cvfit)

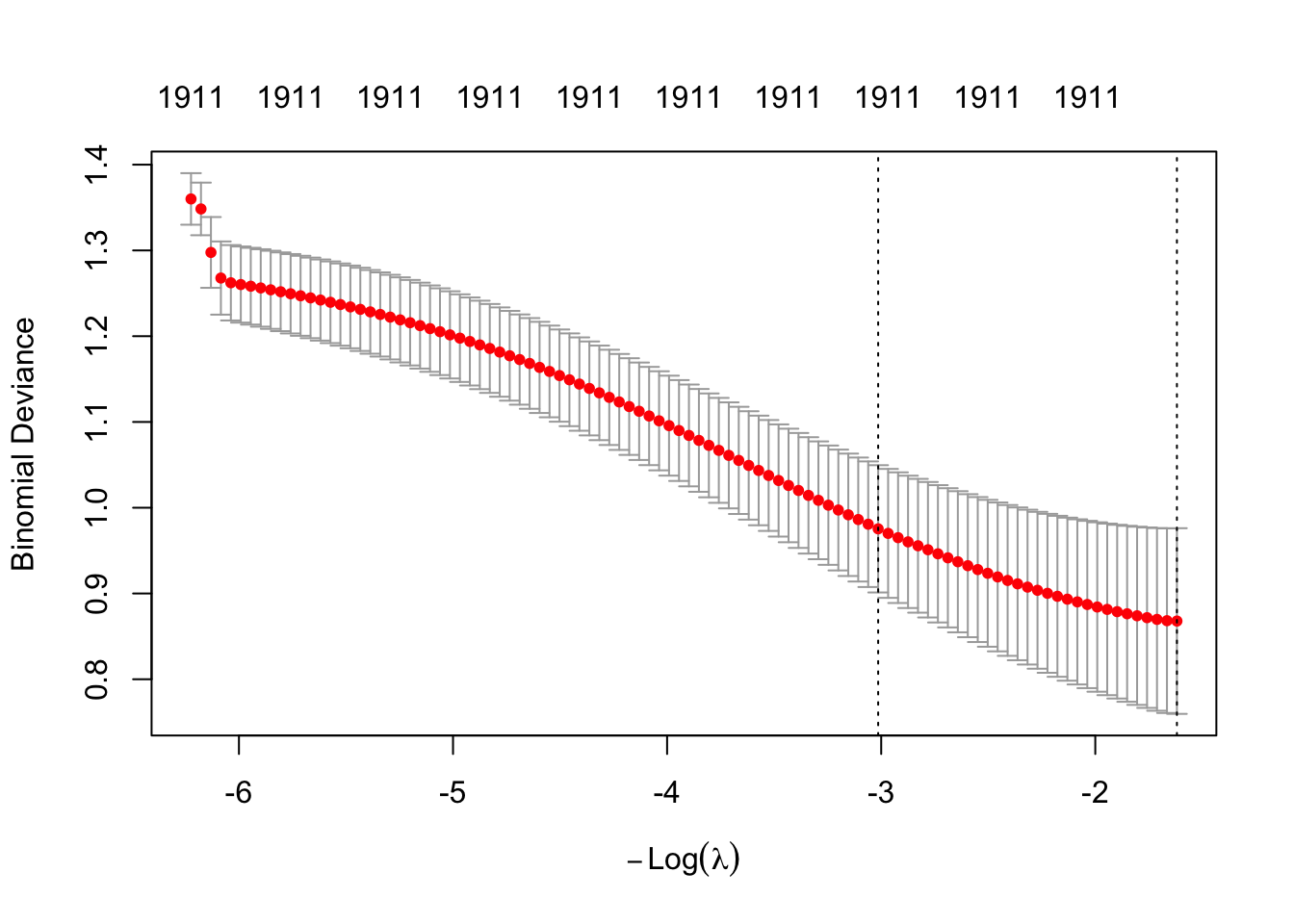

If we did not standardize the predictors, we might expect some monotonic, pathological CV curve plot, such as
set.seed(221)
X2 = colon[,-1] %>%
as.matrix()
cvfit2 <- glmnet::cv.glmnet(X2, y, alpha = 0,
intercept = FALSE,
family = "binomial",
nfold = 10)
plot(cvfit2)
beta_min = coef(cvfit, s = "lambda.min")
beta_min_mat = as.matrix(beta_min)
beta_min_mat %>%
as.data.frame() %>%
arrange((dplyr::desc(abs(lambda.min)))) %>%
rename("betaHat" = "lambda.min") %>%
rownames_to_column(var = "ProbeID") %>%
mutate(num = 1:nrow(beta_min_mat)) %>%
filter(num <= 10) %>%
left_join(annotations, by = c("ProbeID" = "ProbeID")) %>%
select(-c("Other1", "UniGeneID", "Region", "Accession")) %>%
datatable(rownames = FALSE, options = list(pageLength = 5),
caption = "")
